Rigid-Flex PCB

These circuit boards are a hybrid of flex and rigid circuits. The advantage is that they exhibit the benefits of both rigid as well as flexible circuit boards.

Rigid-Flex PCB

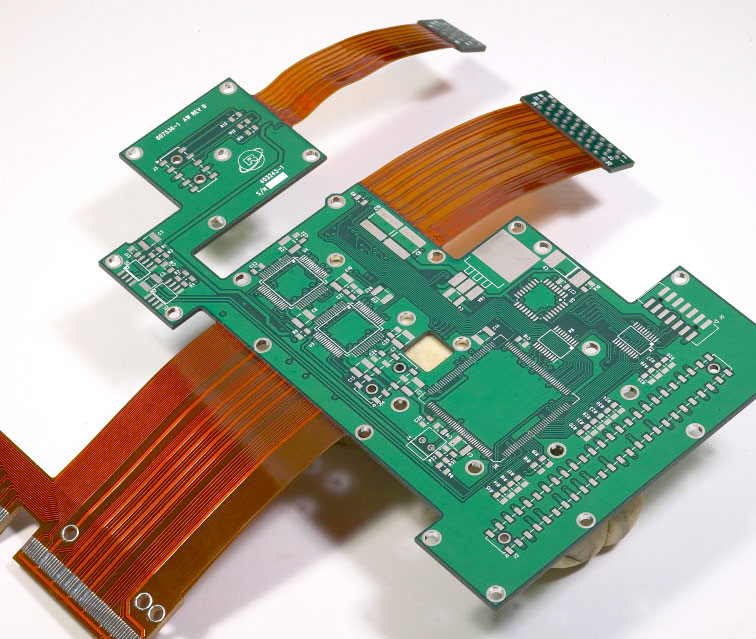

Rigid flex PCBs are printed circuit boards highlighted by both rigid and flexible areas that make them ideally suited for a wide range of applications. The typical rigid-flex PCB circuit includes two or more conductive layers that comprise either flexible or rigid insulation material between each one – the outer layers may have either exposed pads or covers. Conductors are found on the rigid layers, while plated through-holes are found in both the rigid and flexible layers.

Outsource Rigid-Flex PCB to Bester

  • Reduced Costs
  • Increased Productivity
  • Experienced Techinicans

Rigid Flex PCB Solutions of the Highest Quality

Currently, Bester has served companies in industries such as medical, telecommunications and manufacturing with our superior quality rigid flex PCB manufacturing services. We have an in-house quality control department to ensure your boards fabricated and assembled properly – we also guarantee the quality of all parts and components. Our engineers will even perform a Design for Manufacture check at no additional charge.

Our experience and technical expertise enable us to develop custom rigid-flex circuit boards for any specific application. Here is our full feature rigid-flex PCB manufacturing capabilities:

Rigid-Flex PCB Product Specifications

FeatureCapabilities
Quality GradeStandard IPC 2
Number of Layers2 – 24layers
Order Quantity1pc – 10000+pcs
Build Time2days – 5weeks
MaterialDuPont (PI25UM), FR4
Board SizeMin 6mm x 6mm
Max 457mm x 610mm
Board Thickness0.6mm – 5.0mm
Copper Weight (Finished)0.5oz – 2.0oz
Min Tracing/Spacing3mil/3mil
Solder Mask SidesAs per the file
Solder Mask ColorGreen, White, Blue, Black, Red, Yellow
Silkscreen SidesAs per the file
Silkscreen ColorWhite, Black, Yellow
Surface FinishHASL – Hot air solder leveling
Lead – free HASL – RoHS
ENIG – RoHS
Min Annular Ring4mil
Min Drilling Hole Diameter8mil
Impedance control±10%
Other TechniquesHDI
Gold fingers
Stiffener (only for PI/FR4 substrate)

Explore Our PCB Products

Bester Tech offers PCB fabrication & manufacturing service, providing consistently top-notch quality printed circuit boards at most reasonable prices.

Bester Tech strives to meet your PCB fabrication needs in various materials and technologies, with an unwavering commitment to global high industry standards, whether a single board for a prototype or large volume production runs. We now focus and support projects including standard, advanced, HDI, multilayer PCBs, flexible, rigid-flex boards, aluminum PCBs, prototypes to small batches.

We have the PCB manufacturing capabilities to build simple to complex bare boards. Please review the example printed circuits below and let us know if you have any questions or would like a formal quote

RIGID PCB

Rigid PCB is a type of regular PCB which can not be twisted or folded into any shape because it comes with FR4 stiffener which is very useful for added amount of stiffness and rigidity.

FLEX PCB

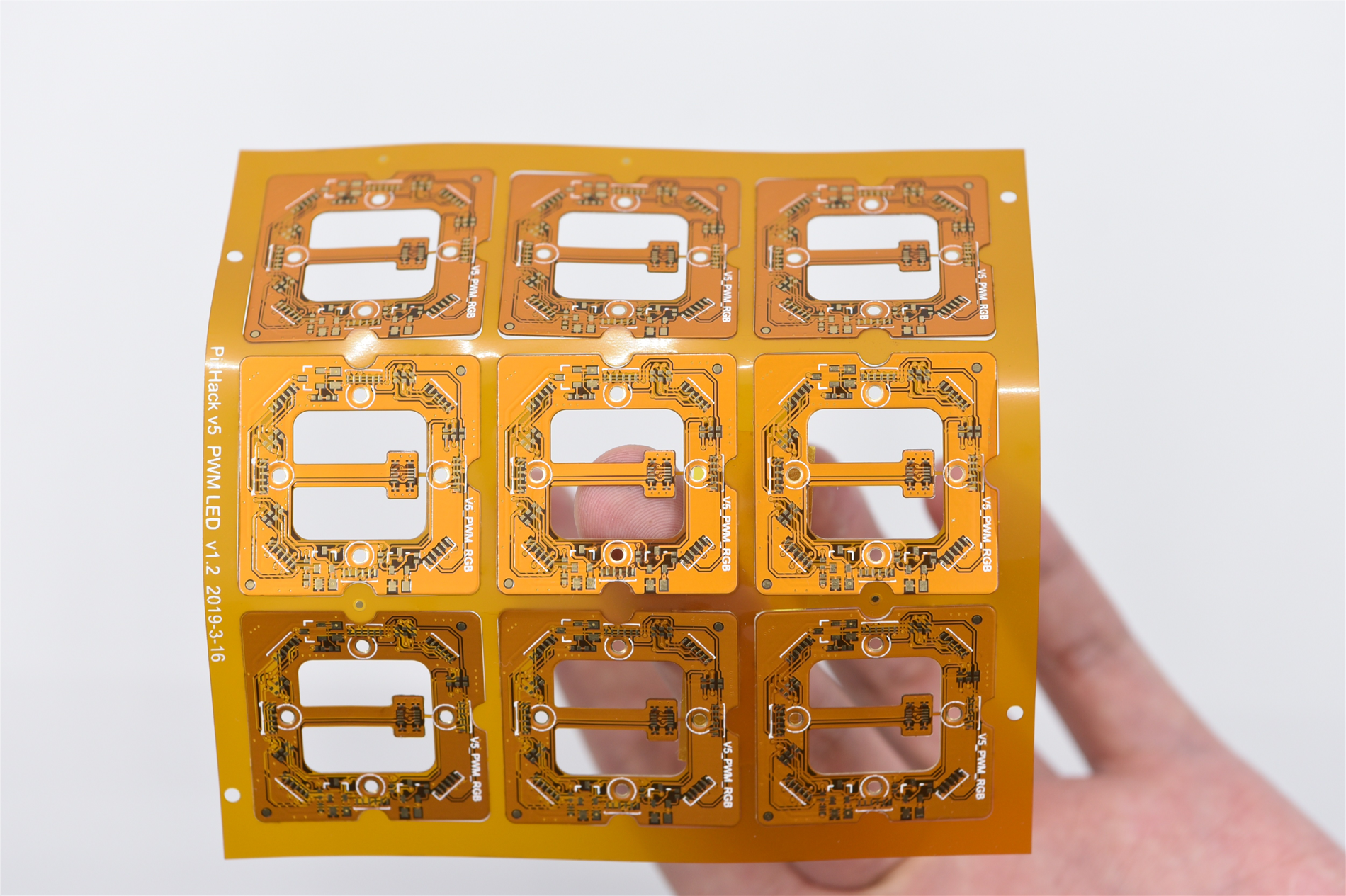

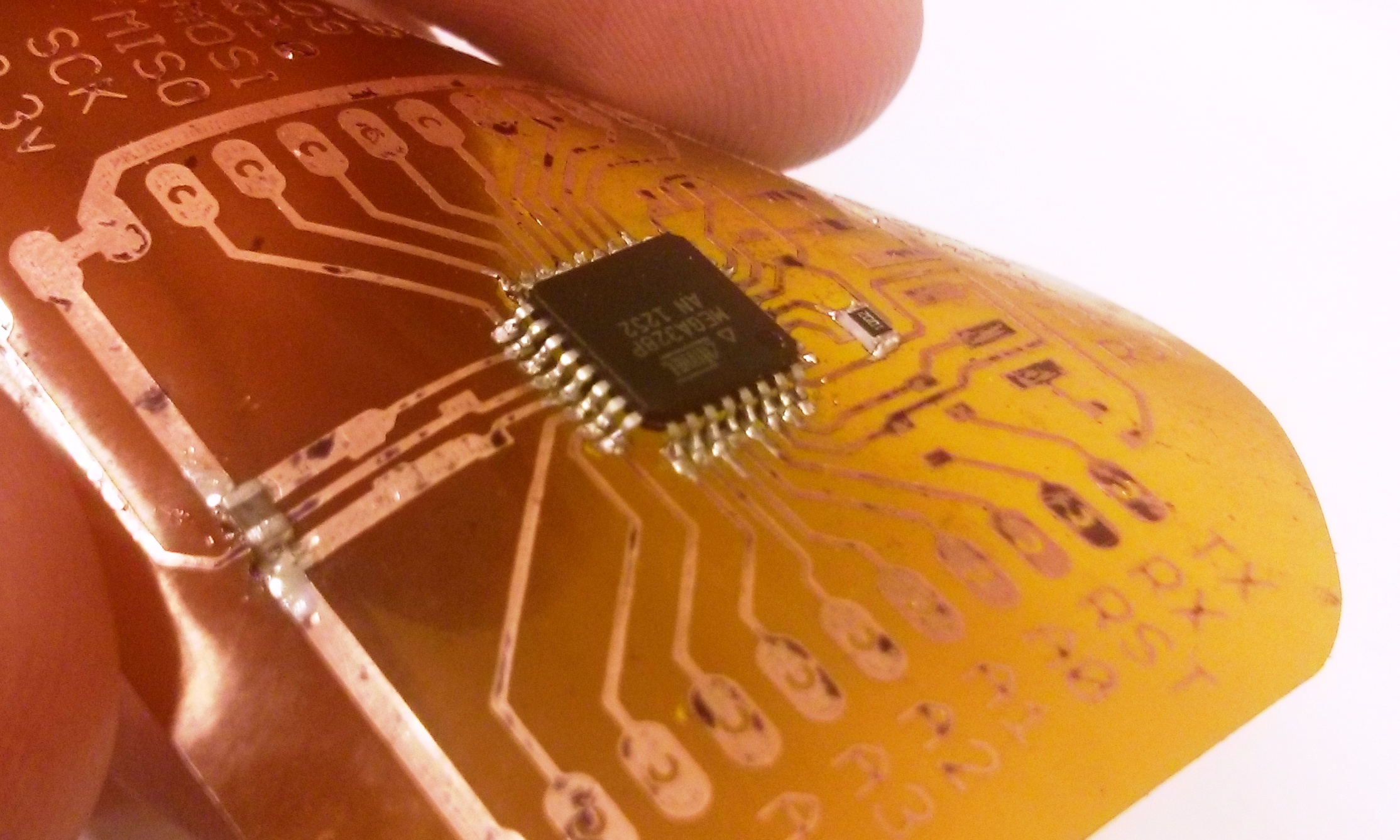

Flexible circuits (also variously referred to around the globe as flex circuits, flexible printed circuit boards, flex print, Flexi-circuits) are members of electronic and interconnection family.

RIGID-FLEX PCB

Rigid-Flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application.

ALUMINUM PCB

Among all metal core PCBs (aka MCPCBs, known for their ability to provide effective thermal dissipation for electronic products), Aluminum PCBs is the most common type – the base material consists of aluminum core with standard FR4.

HDI PCB

HDI PCB is widely used to reduce the weight and overall dimensions of products, as well as to enhance the electrical performance of the device.

HIGH FREQUENCY PCB

A high-frequency PCB can meet your needs when incorporating a special signal requirement into your electronic components and products.

READY FOR THE NEXT STEP?

Need custom specifications, pricing, delivery information or samples?
