High Frequency PCB

High frequency printed circuit boards are used to transmit electromagnetic waves in the frequency of GHz with minimal loses.

High Frequency PCB

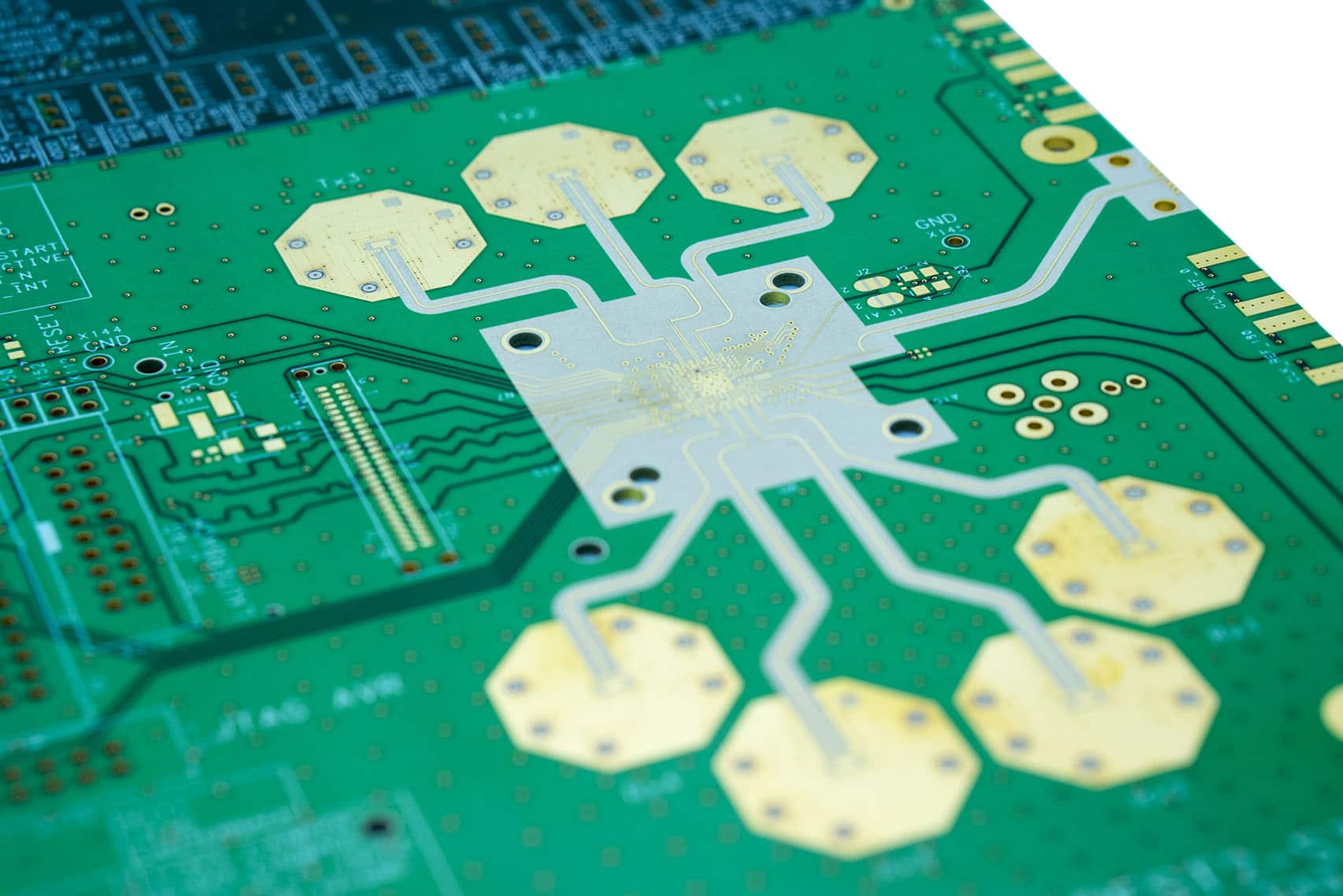

A high-frequency PCB can meet your needs when incorporating a special signal requirement into your electronic components and products. It offers a frequency range of 500MHz – 2GHz, making it ideally suited for high-speed designs, as well as radiofrequency, microwave and mobile applications. These higher transmission frequencies can also provide the faster signal flow rates that are a necessity in today’s increasingly complex electronic switches and other components.

Outsource High Frequency PCB to Bester

  • Reduced Costs
  • Increased Productivity
  • Experienced Techinicans

High Frequency PCB High-Quality Standards

Special materials are required to achieve the high frequency provided by this type of printed circuit board – any changes in the Er value of these materials can affect the impedance of the board. Many PCB designers turn to Rogers dielectric material for its lower dielectric loss, reduced signal loss, lower cost of circuit fabrication and better suitability for fast-turnaround prototyping applications.

Apart from choosing the appropriate PCB material and determining the correct the value of the designers should take parameter such as conductor width and spacing, substrate constant into consideration. These parameters must be exactly specified and implemented with the highest level of process control.

High Frequency PCB Product Specifications

FeatureCapabilities
Quality GradeStandard IPC 2
Number of Layers4 – 24layers
Order Quantity1pc – 10000+pcs
Build Time2days – 5weeks
MaterialRO4003C, RO4350B, Ro3003, Ro3010, RT5880
PPRogers 4450F, Domestic-(25FR), Domestic-(RF-27), Domestic-(6700)
Board SizeMin 6mm x 6mm
Max 457mm x 610mm
Board Thickness0.4mm – 5.0mm
Copper Weight (Finished)0.5oz – 2.0oz
Min Tracing/Spacing3mil/3mil
Solder Mask SidesAs per the file
Solder Mask ColorGreen, White, Blue, Black, Red, Yellow
Silkscreen SidesAs per the file
Silkscreen ColorWhite, Black, Yellow
Surface FinishElectroless nickel/immersion gold (ENIG) – RoHS
Immersion silver – RoHS
Immersion tin – RoHS
Organic solderability preservatives – RoHS
Min Annular Ring4mil
Min Drilling Hole Diameter6mil
Impedance tolerance±10%
Other TechniquesPeelable solder mask
Gold fingers
Carbon oil
Countersink holes

Explore Our PCB Products

Bester Tech offers PCB fabrication & manufacturing service, providing consistently top-notch quality printed circuit boards at most reasonable prices.

Bester Tech strives to meet your PCB fabrication needs in various materials and technologies, with an unwavering commitment to global high industry standards, whether a single board for a prototype or large volume production runs. We now focus and support projects including standard, advanced, HDI, multilayer PCBs, flexible, rigid-flex boards, aluminum PCBs, prototypes to small batches.

We have the PCB manufacturing capabilities to build simple to complex bare boards. Please review the example printed circuits below and let us know if you have any questions or would like a formal quote

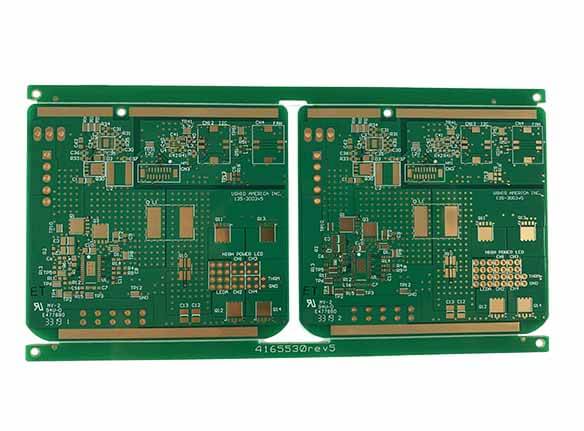

RIGID PCB

Rigid PCB is a type of regular PCB which can not be twisted or folded into any shape because it comes with FR4 stiffener which is very useful for added amount of stiffness and rigidity.

FLEX PCB

Flexible circuits (also variously referred to around the globe as flex circuits, flexible printed circuit boards, flex print, Flexi-circuits) are members of electronic and interconnection family.

RIGID-FLEX PCB

Rigid-Flex printed circuit boards are boards using a combination of flexible and rigid board technologies in an application. Most rigid flex boards consist of multiple layers of flexible circuit substrates attached to one or more rigid boards externally and/or internally, depending upon the design of the application.

ALUMINUM PCB

Among all metal core PCBs (aka MCPCBs, known for their ability to provide effective thermal dissipation for electronic products), Aluminum PCBs is the most common type – the base material consists of aluminum core with standard FR4.

HDI PCB

HDI PCB is widely used to reduce the weight and overall dimensions of products, as well as to enhance the electrical performance of the device.

HIGH FREQUENCY PCB

A high-frequency PCB can meet your needs when incorporating a special signal requirement into your electronic components and products.
